Round air diffuser PVC 4 inch - Adjustable air flow
$ 4.99
Professional? Please connect to your account for your prices.
Brand: ORTECH
Model: PAV-4
SKU: PAV-B4





Polymeric air valve for air supply and exhaust in ventilation systems


Description:

To be mounted into round duct by mounting frame
Polypropylene body with adjustable core and thread
Case Quantities: 7
  1. Cut out a suitable hole in the ceiling
  2. Install in the ceiling with screws through the holes
  3. Connect the duct with the neck of PAV-B directly
  4. Adjust the air flow by rotating the central part

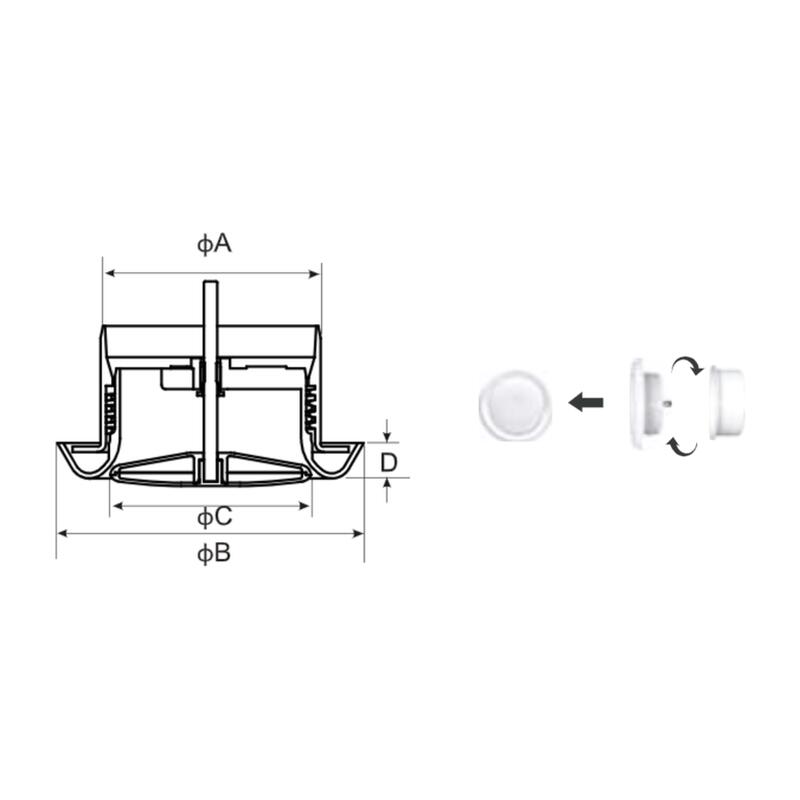

Model ⌀ A ⌀ B ⌀ C D
PAV-B 4" 3-13/16" 5-7/16" 3-9/16" 9/16"
PAV-B 5" 4-13/16" 6-5/8" 4-1/2"
PAV-B 6" 6-3/16" 8-7/16" 5-1/8"
PAV-B 8" 7-11/16" 10-1/16" 7-7/16"
